Polyform US | SKU: 86-185-752

CM-Series Mooring Buoy CM-3

$254.49 USD

Shipping calculated at checkout.

Product Dimensions

Model	CM-3
Diameter	17.0 in
Height	22.0 in
Circumference	53.4 in
Center Tube Diameter	5/8 in
Volume	11.8 gal
Unit Weight	12.0 lb
Height w/Iron	35.0 in
Max. Chain Weight	74.0 lb

Mooring Buoy Safety Tips

In adverse conditions, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power.
A second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails.
Shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.
Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

Mooring Buoys Sizing Guide

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Never exceed the maximum chain weight (75% of the buoy's displacement weight) from the buoy table below. These estimates are for ideal conditions, buoys placed in rougher conditions with strong currents and large tidal swings may require greater buoyancy and a larger size buoy.

Accessories

Inflation Adapter

Regular price $1.30 USD

Qty

Description

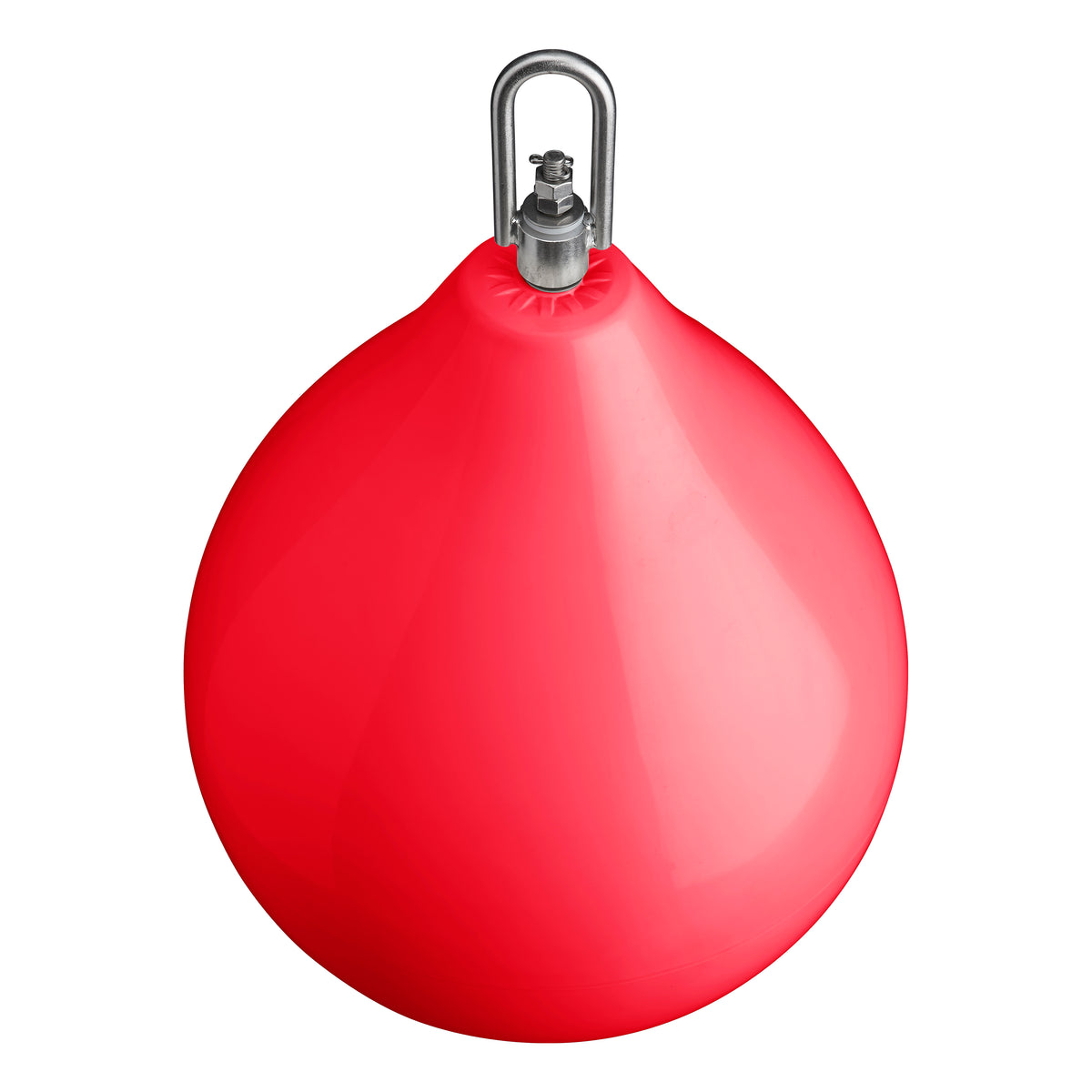

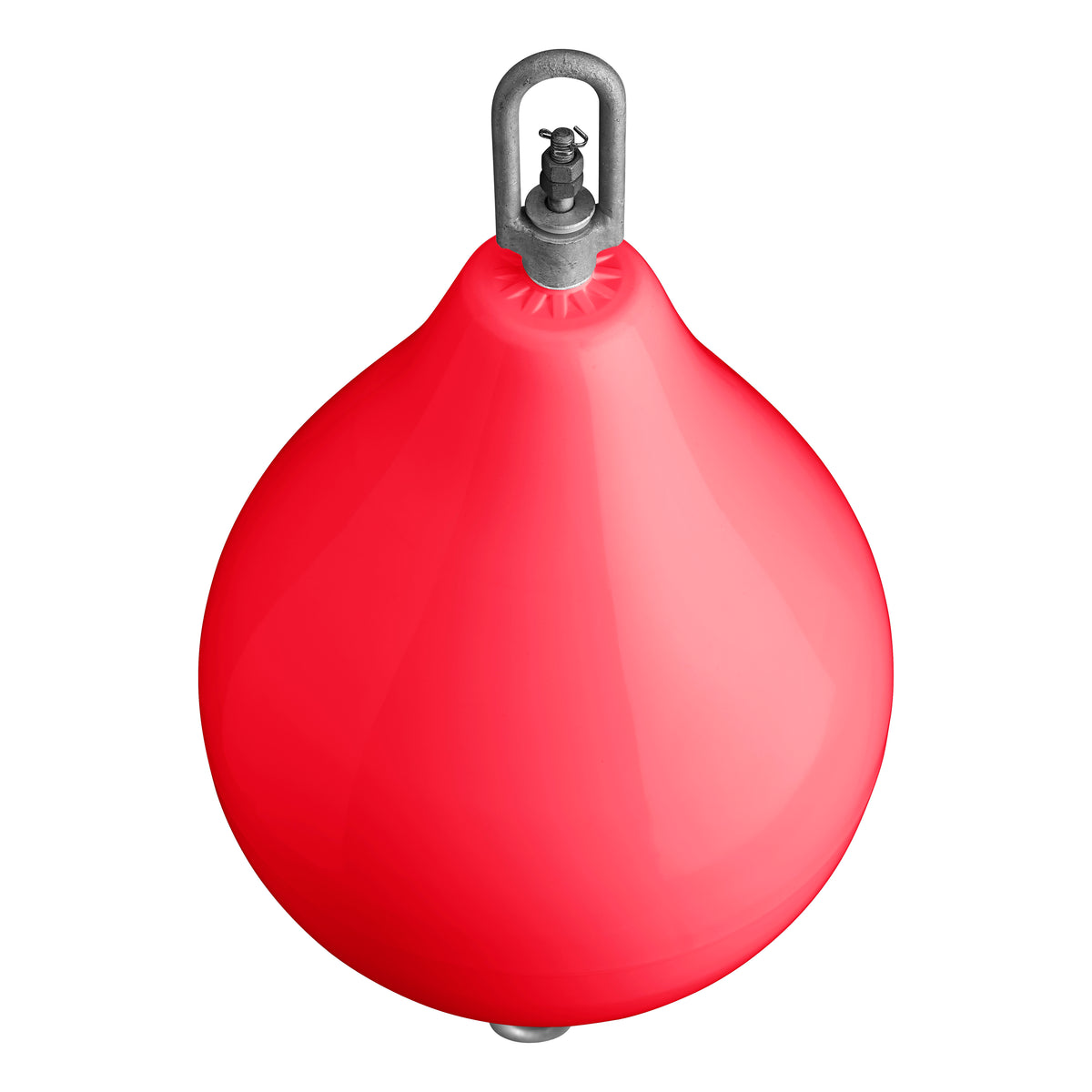

The CM-Series Mooring Buoy has been designed to provide the ultimate in strength, durability and boat protection, giving increased security to any mooring. Made with a galvanized steel mooring iron with a protective vinyl-coated eye. To provide strength and security, each version features a 1/2-inch central rod, a large eye (4-3/8 inch diameter), and a swivel (1-1/2 inch wide). The CM-Series is a long tested standard in mooring buoy design and is preferred by many boaters worldwide. The CM is available in four color versions: red, yellow, white, or white with a blue stripe. It's also available in two colors, red or white with a blue stripe when pre-assembled with a mooring iron.
